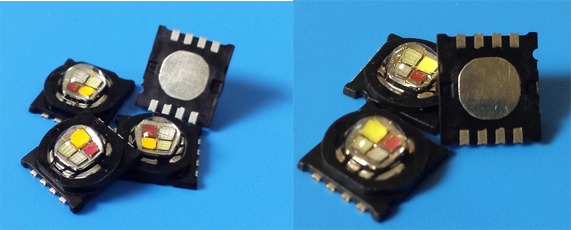

Multichip RGBW LEDs 8pins 15W Diodes Full Color High Power LED Chip

Brand Name : TYANSHINE

Model Number : TX-RBWG15B120-001

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 500pcs

Price : USD

Supply Ability : 100K / month

Packaging Details : In plastic Tube or Reel

Color-mixing : Full Color RGBW / RGBA

Power : 15Watt

Forward Current : 4 x 1000mA

Voltage : DC 3.2-3.5V

Lumen : 800 lm

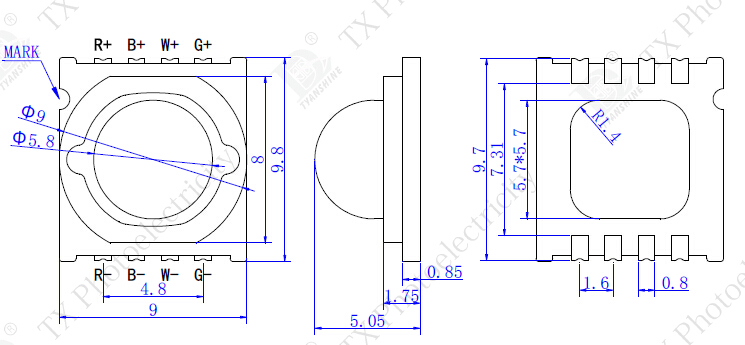

LES : Φ5.8 mm

Package Size : 9x9mm

Contact Now

Multichip RGBW LEDs 8pins 15W Diodes Full Color High Power LED Chip

Features of the RGBW / RGBA LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

RGBW Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.4-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310

RGBA Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBYG151B180-001 Red 2.4-3.2 1000 618-628 100-120 15W Φ5.8
Green 3.2-3.8 1000 520-530 145-170
Blue 3.2-3.8 1000 450-460 30-40
Amber 2.4-3.2 1000 588-595 110-130

Multichip RGBW LEDs 8pins 15W Diodes Full Color High Power LED Chip

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

Multichip RGBW LEDs 8pins 15W Diodes Full Color High Power LED Chip
